Sailor H1252B TT‑3608A GMDSS Printer 10.5‑32V DC
Estimated Delivery:
15 July - 16 July

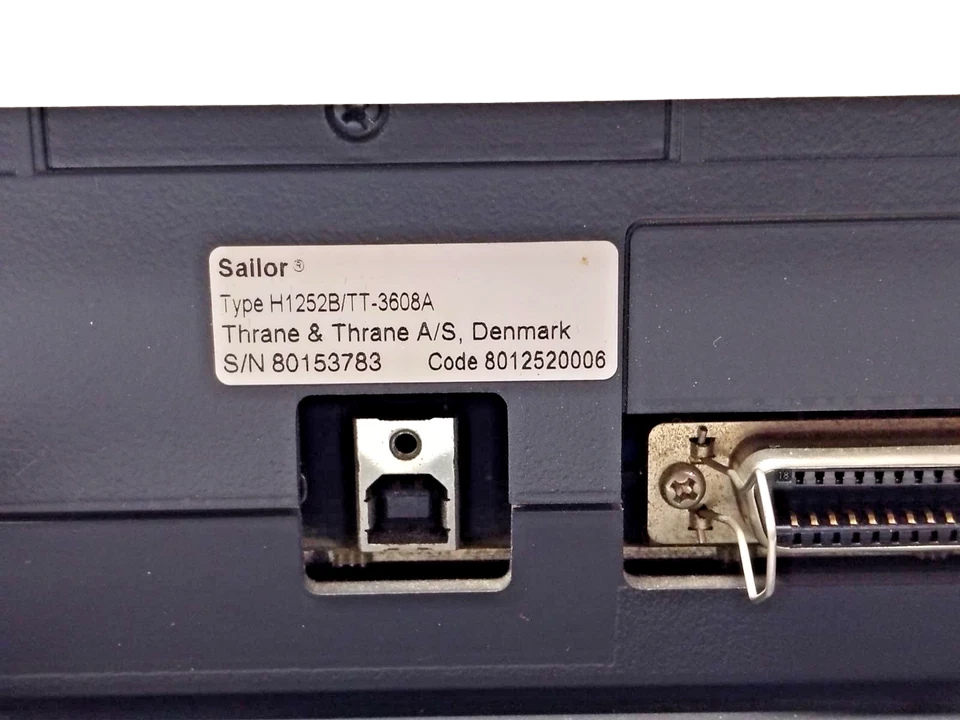

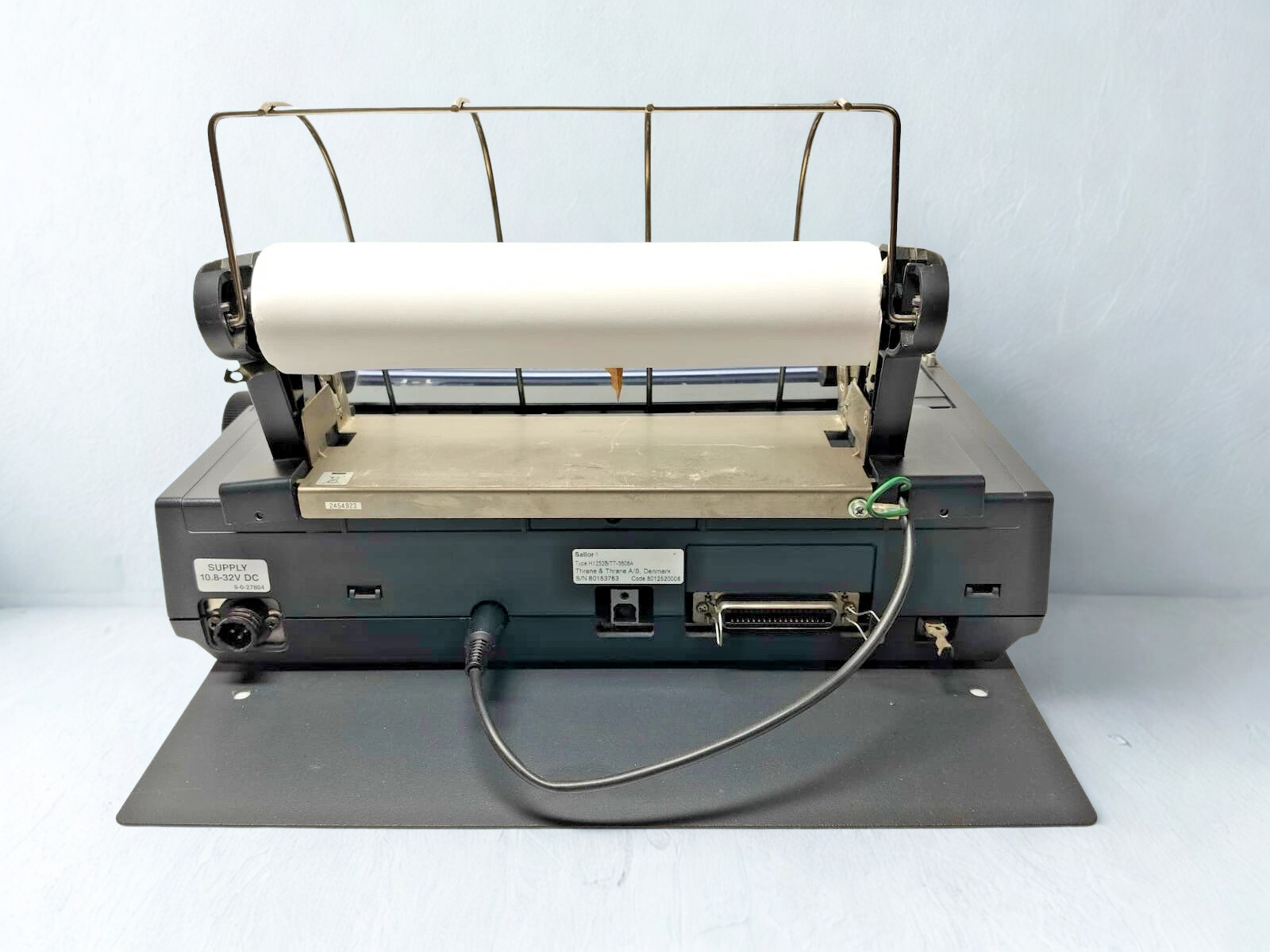

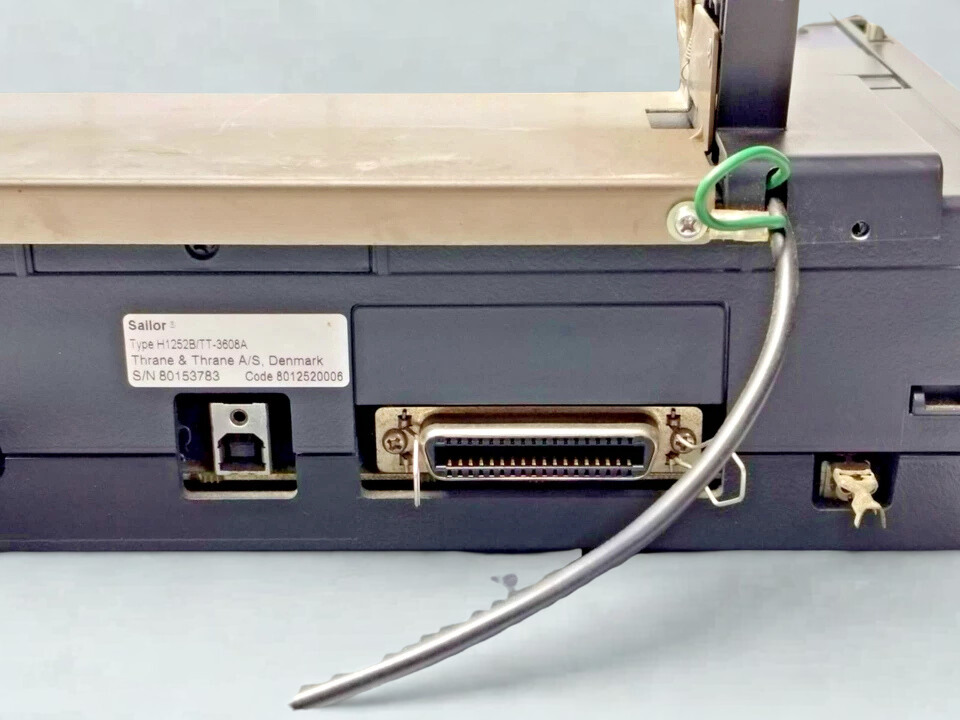

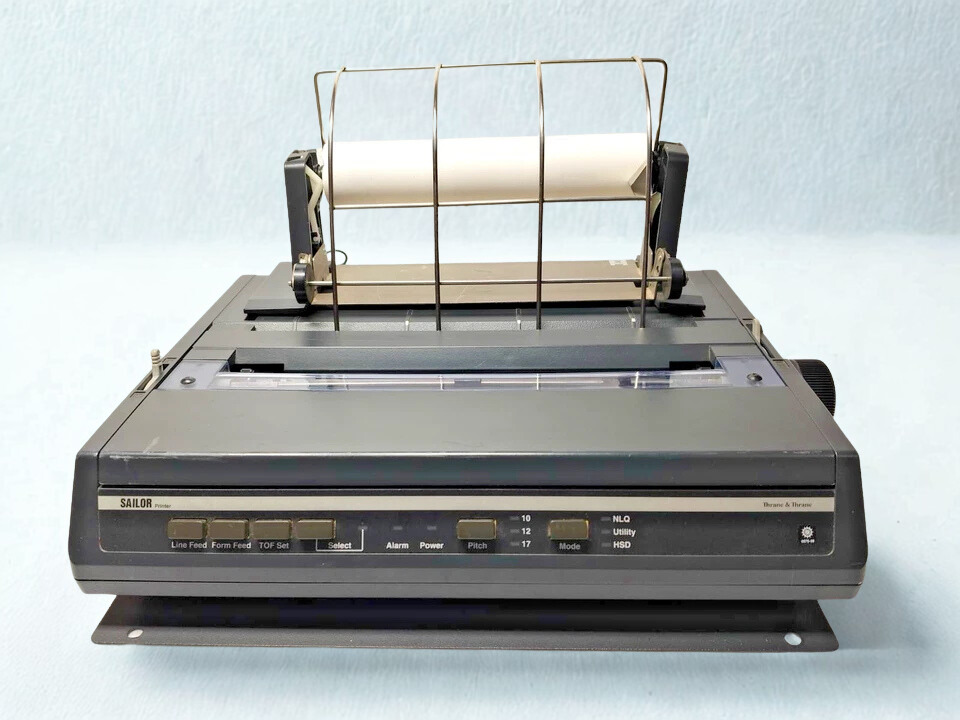

Sailor H1252B TT‑3608A GMDSS Printer 10.5‑32V DC Description: The Sailor H1252B/TT‑3608A is a small, tough hardcopy printer that works with GMDSS and Inmarsat‑C/Mini‑C to print distress alerts, traffic, logs, and system messages on SOLAS ships. It runs directly from ship batteries that provide between 10.5 and 32 VDC, so there is no need for an external inverter. It is built around the tried-and-true OKI Microline 182/280 mechanism and a dedicated DC power module. The printer comes with a roll paper stand, a mounting kit (H1250), power and Centronics cables, and a plate that lets you mount it in SAILOR H2192 GMDSS consoles. Because of its design, approvals, and strong mechanics, it is a long-term solution for shipowners who want GMDSS printing that is both compliant and reliable. Technical Specifications Parameter Value Printer type Hardcopy dot‑matrix printer based on OKI MICROLINE 182/280 Supply voltage range 10.5 VDC to 32 VDC (12/24 V battery systems) Current consumption Max. approx. 4.5 A (DC module, fuse 6.3 A T) Output voltages (internal PSU) 10 VDC / 0.3 A; 30 VDC / 0.8 A (to printer electronics/mechanics) On/Off control Front panel power switch on supply module Operating temperature Approximately −15 °C to 55 °C Interfaces Parallel (Centronics); versions with additional USB interface (8012520006) Standard accessories Roll paper stand, mounting kit H1250, paper roll, power cable, Centronics cable Console mounting Can be installed in SAILOR H2192 GMDSS console with supplied mounting plate Typical color Black/grey housing Shipment dimensions Approx. 41 × 31 × 21 cm Weight Approx. 4 kg net (shipping weights around 8 kg depending on supplier) HS code 8443.3210 (printers) Industry Applications: 1) Commercial cargo and tanker vessels classified under SOLAS requiring approved GMDSS printers. 2) Passenger vessels and ferries employing SAILOR GMDSS and Inmarsat-C terminals for emergency and safety communications. 3) Offshore platforms and support vessels necessitating physical documentation of safety and operational communications. 4) Fishing vessels and coastal crafts outfitted with SAILOR 6110 GMDSS Mini-C and associated systems. 5) Coastal radio stations and marine communication centers utilizing Thrane & Thrane/Sailor telex and Satcom apparatus.
