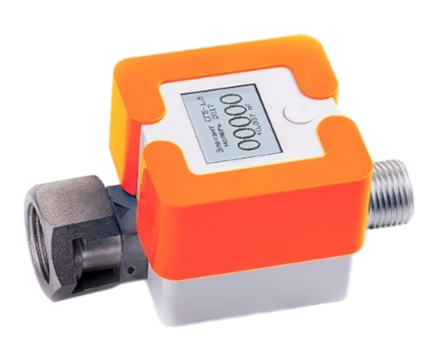

DescriptionThe counter is designed to work in the following conditions: ambient temperature from minus 10 to plus 50 °C;relative humidity from 30 to 80% at a temperature not higher than plus 25 ° C;atmospheric pressure from 84 to 106.7 kPa (from 630 to 800 mm Hg).Gas flow measurement ranges from Qmin to Qmax, m3/h 0.08 - 4Limits of permissible basic relative error of gas volume measurement, %flow rate range from Qmin to 0.8 Qmax ± 4The diameter of the conditional passage of the meter housing, mm 25Connection size according to GOST 6357-81 G ½The operation mode of the counter is continuous Overall dimensions, mm, no more than 110 x 66 x 55Counter weight, kg, not more than 0.3The lowest price of dividing the meter counting device, m3 0.001 included:device;pads;passport;boxmore hide
